HEATING CABLE

Product Info

Verification of products guarantees durability and stability.

Product introduction
Power 220V, 50~60HZ
Heat-resistant temperature 100℃
Withstand voltage 1.500V/1minute
Durability Semi-permanent
Heat-resistant temperature 8cm~15cm
Calorific value 20W/H/M
Thickness 5.0mm
Product specification
Model name Length Capacity Standard resistance Value Recommended usage area
XiCA-05 15.0m 300W/H 160.0Ω 1.6㎡
XiCA-10 30.0m 600W/H 80.0Ω 3.3㎡
XiCA-15 45.0m 900W/H 60.0Ω 5.0㎡
XiCA-20 60.0m 1200W/H 40.0Ω 6.6㎡
XiCA-25 75.0m 1500W/H 33.0Ω 8.3㎡
XiCA-30 90.0m 1800W/H 26.5Ω 10.0㎡
XiCA-40 120.0m 2400W/H 20.0Ω 13.0㎡
Since many years ago, the range of 2mG~10rnG has been set as a standard for electromagnetic restrictions by developed countries, including Swiss, Sweden, Italy and America
What is good well-being heating cable of RexVa?
  • ㆍ As a method of embedding non-magnetic heating cable (NON-MAGETIC HEATING CABLE) on the floor of a building and heating it using electric energy, it is for wet construction using radiant heat and convection heat..
  • ㆍ It is a system that blocks electromagnetic waves with a non-magnetic field heating method and make users enjoy a comfortable indoor environment and a healthy and convenient heating effect with no noise and no pollution.
  • ㆍ In the era of high oil prices, enjoy a warm winter at half the cost of oil and gas.

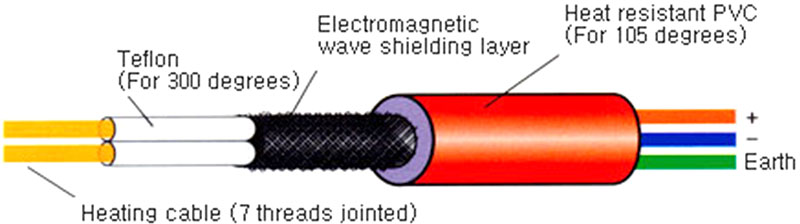

Heating Cable structure
